Adding Country and State Codes

The Country and State Code Maintenance screen allows you to maintain country and state codes. Most of this data is prepopulated during installation, but you can add new data using this screen. You can also modify the name of a country from this screen, should the need arise.

The country codes used in Personify360 reflect ISO standards. Personify recommends that you follow these standards and use ISO-recommended codes when adding new countries.

The most current version of ISO country codes are available at http://www.iso.org/iso/country_codes/iso_3166_code_lists/country_names_and_code_elements.htm.

A default country is assigned at the organization level, so it is necessary that the country code exist in the Country Code setup before you try assigning the default country. Countries are also used in the Address Structure setup and in Shipping Charge Definition.

Country codes are maintained in the App_Country table. Country codes are pre-populated in the App_Country table for USA, Canada, and Mexico when Personify360 is delivered.

State codes are maintained in the App_State table. Before state codes can be created, the country code must first exist in the App_Country table. State codes are pre-populated in the App_State table for USA, Canada, and Mexico when Personify360 is delivered.

Adding extensive data to the App_Country and App_State tables can cause possible performance overhead. Personify recommends only populating the tables with necessary data.

To set up a country and state code:

1.    From the Personify360 main toolbar, select System Admin > System Setup > Country and State Code Setup.
The Country and State Code Maintenance search screen displays.

2.    To edit an existing Country code, search for the existing record and click Select. To create a new Country code, click Create New.

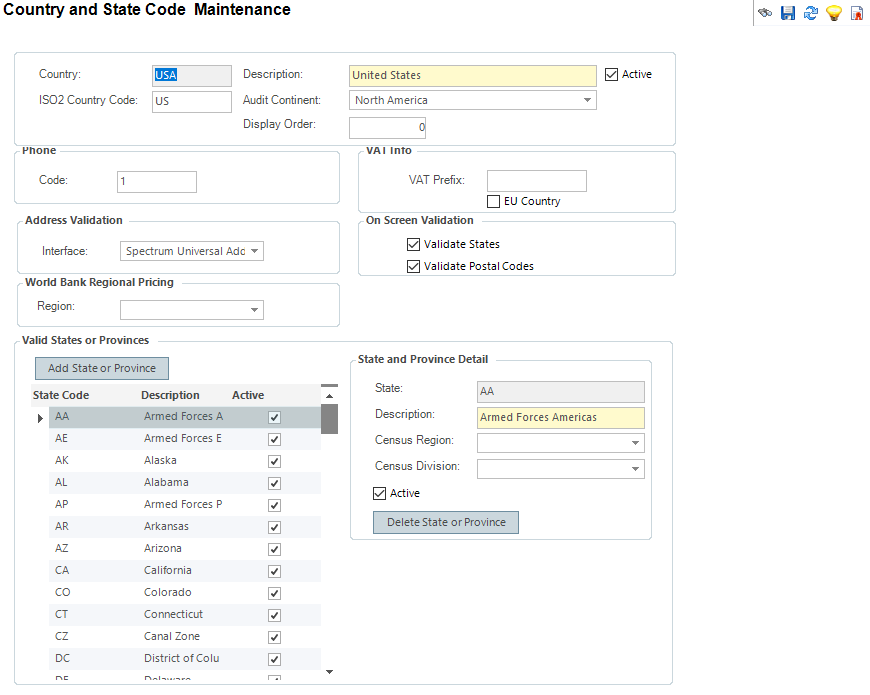

The Country and State Code Maintenance screen displays, as shown below.

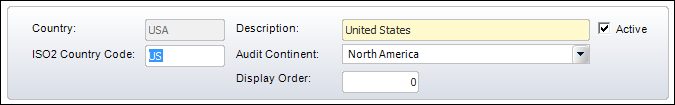

3.    Edit the necessary information in the Header section, as described and shown below.

·            Country: The appropriate country for the record. This field is disabled when you are editing an existing record. The system uses the three-character international standard code for each country. The default country code is defined for all Personify360 organization units within an organization at the organization level. The default country code defined at the Personify360 organization-level is the country code that defaults into all addresses and elsewhere in the application where a country code is used.

·            Description: The description or long name of the country.

·            ISO2 Country Code: The 2-letter country code as established by the International Organization for Standardization (ISO). Please see http://www.iso.org/iso/country_codes/iso_3166_code_lists/country_names_and_code_elements.htm for more information on the current country codes.

·            Audit Continent: This drop-down allows you to select the region or continent that the country is located (i.e., Africa, Central America, North America, etc).

·            Display Order: As of 7.6.1, enter the display order for the country. Countries with the lowest display order will be listed first and then alphabetically by country name. Please note that the display order is only used in Operations and on the Web when adding/editing customer addresses.

0 is the lowest value possible for Display Order.

·            Active: Indicates whether the country code is active. It is selected by default. Only active countries can be selected for addresses and elsewhere where country codes are validated.

4.    Edit the necessary information in the Phone section, as described and shown below.

·            Code: The phone area code for dialing the country.

5.    Edit the necessary information in the VAT Info section, as described and shown below.

·            VAT Prefix: Prefix for the value-added tax. This tax is used in Europe. The prefix for the exempt code must start with the phone number code.

·            EU Country: Identifies countries that are members of the European Union. As of 2007, there are 27 member countries.

6.    Edit the necessary information in the Address Validation section, as described and shown below.

·            Interface: The interface with which to perform the validation. For example, Group1 Universal Coder. If you do not want to validate addresses (or if issues occur with Group1), you can select “None” here to turn it off.

7.    Edit the necessary information in the On Screen Validation section, as described and shown below.

·            Validate States: When selected, indicates that validation will be performed when information is entered in a state field. It is deselected by default. This validation is needed for the ZIP100 process to function properly.

State codes can only be entered for countries where the Validate States checkbox is checked.

·            Validate Postal Codes: When selected, indicates that validation will be performed when information is entered in a zip (postal) code field. This validation is needed for the ZIP100 process to function properly.

8.    Edit the necessary information in the World Bank Regional Pricing section, as described and shown below.

·            Region: Identifies the world bank region associated with this country. For more information, please see Pricing By World Bank Region.

9.    To add a new state or province associated with the country, click Add State or Province.

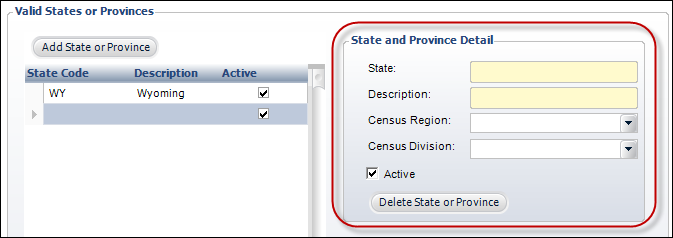

The State and Province Detail fields are enabled, as shown below.

State codes can only be entered for countries where the Validate States checkbox is checked.

If states/provinces are defined for a country, the state/province will inherently be required. Therefore, it its recommended that you check the Required checkbox on the Address and Phone Structures screen in which states/provinces are defined for the country. If you do NOT want the state to be required, you should delete all of the states/provinces on this screen.

10.   In the State and Province Detail section, enter the following information:

·            State: The code of the state or province within the country. For example, “VA” is the state code for Virginia in the United States

·            Description: The description or long name of the state or province.

·            Census Region: A geographic area consisting of several states defined by the U.S. Department of Commerce, Bureau of the Census. The states are grouped into four regions and nine divisions. The regions include Northeast, Midwest, South, and West. Please see http://www.census.gov/geo/maps-data/maps/pdfs/reference/us_regdiv.pdf for more information on selecting the correct census region. Values in the drop-down are populated based on the non-fixed codes defined for the ADR "CENSUS_REGION" system type.

·            Census Division: Drop-down. A geographic area consisting of several states defined by the U.S. Department of Commerce, Bureau of the Census. The states are grouped into four regions and nine divisions. The divisions include New England, Middle Atlantic, East North Central, West North Central, South Atlantic, East South Central, West South Central, Mountain, and Pacific. Please see http://www.census.gov/geo/maps-data/maps/pdfs/reference/us_regdiv.pdf for more information on selecting the correct census division. Values in the drop-down are populated based on the non-fixed codes defined for the ADR "CENSUS_DIVISION" system type.

·            Active: Click to delete a state or province entry.

·            Delete State or Province: Highlight the state or province that you want to remove and select this button.

State codes can only be entered for countries where the Validate States checkbox is checked, as highlighted above.

11.  Click Save.
