LDAP Authentication

The Active Directory integration works when the Personify360 application server is a member of the domain it is authenticating against (the user’s AD domain). This poses a challenge for managed services staff to be able to administer the server, because they have to have credentials and rights in the foreign domain. Therefore, the Lightweight Directory Access Protocol (LDAP) allows user to authenticate the user against their domain controller.

LDAP Server Configuration

Administrators can configure LDAP in the Personify.Server.ApplicationServer.exe.config file under PersonifySettings:



Attribute

Description

Domain

Name of the Active Directory Domain

If you are configuring a LDAP-based user directory, specify a unique name.

Example: MYDOMAIN

ServerName

Name or IP Address of the user directory server.

If you are configuring an Active Directory Global Catalog, specify the global catalog server name.

Example: MyServer

Port

The port number where the user directory is running.

If you are configuring an Active Directory Global Catalog, specify the port used by the global catalog server (default is 3268).

Example: 389

UseSecureLDAP

When set to True, enables Secure Socket Layer (SSL) communication with the user directory. The user directory must be configured for secure communication.

LDAPVersion

Lightweight Directory Protocol Version

Optional if you are configuring Active Directory.

Example: 3

BaseDN

The distinguished name (DN) of the node where the search for users should begin.

If you are configuring a global catalog, specify the DN of the forest.

Example: dc=example,dc=com

SearchFilter

LDAP query filter used to retrieve directory users and shall include object classes and keyword.

If you are configuring Active Directory, specify Ambiguous Name Resolution for keyword like (&(objectCategory=person)(objectClass=user)(anr={0})).

Example: (&(objectClass=person)(|(cn=*{0}*)(sn=*{0}*)(givenname=*{0}*)(uid=*{0}*)(mail=*{0}*)))

SearchSizeLimit

Maximum number of results that a search can return. If this value is greater than that supported by the user directory settings, the user directory value overrides this value. Set the value to 0 to retrieve all users that meet the search criteria.

Applicable only if you are configuring Active Directory.

IDAttribute

A unique user attribute.

If you are configuring Active Directory you may set samaccountName.

Example: entryDN

UseBasicAuth

When set to True, uses basic authentication else uses Authorization Type Negotiate

If you are configuring a LDAP-based user directory, set this to True.

IsActiveDirectory

Flag to identify Active Directory or LDAP-based user directory

If you are configuring a LDAP-based user directory, set this to False.

Disabling Legacy Active Directory Integration

In order to use LDAP authentication, a System Administrator must disable the legacy Active Directory integration. When Active Directory is enabled, the Personify360 log in screen will display the Use Windows Authentication option and system administrators have the option to add a new network user in Personify360.



To disable active directory, set the EnableActiveDirectoryIntegration value to "False" in the config.xml, as shown below.

<Item Name="UserInterface"

SplashScreen="False"

ApplicationHostType="MDIMain"

StartupCommand="file://./HTMLPages\startscreen5.html"

ConfigFolder="Config"

DefaultRole="CallCenterRep"

AdvancedThemes="True"

DefaultTheme="TIMSS_Default.isl"

CustomerProfileURL="http://YourClientWebSite/CustomerProfile/Main.aspx"

RememberPassword="True"

RememberUserId="True"

EnableActiveDirectoryIntegration="False"

EnableLDAPIntegration="True"

ConstituentProfileURL="http://YourClientWebSite/ConstituentProfile/Main.aspx"

MailMergeDirectoryPath="C:\"

BroadcastingEnabled="False"

BroadcastingFrequency="30"

BroadcastMessageDisplayTimeout="15"

UnresolvedIssueAlertFrequencyInMinutes="5"

ReportTaskFormat="DESCRIPTION (CODE)"

EnableDatabaseFilter="False"

AutomaticCapitalization="True"

EnableAddModOperatorAlias="True"

/>

Enabling LDAP Authentication

When the LDAP integration is enabled, system administrators can add/modify a network user in Personify360 Operations.

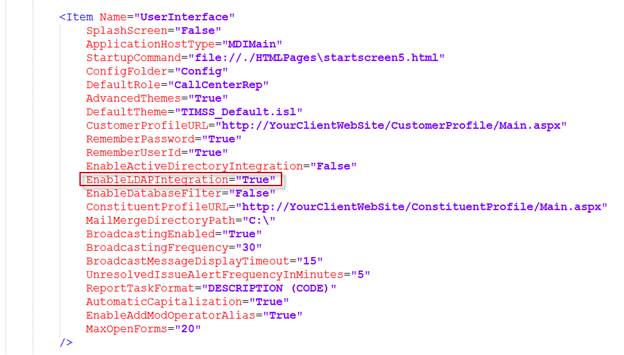

To enable LDAP authentication, set the EnableLDAPIntegration to "True" in the config.xml file, as shown below.



<Item Name="UserInterface"

SplashScreen="False"

ApplicationHostType="MDIMain"

StartupCommand="file://./HTMLPages\startscreen5.html"

ConfigFolder="Config"

DefaultRole="CallCenterRep"

AdvancedThemes="True"

DefaultTheme="TIMSS_Default.isl"

CustomerProfileURL="http://YourClientWebSite/CustomerProfile/Main.aspx"

RememberPassword="True"

RememberUserId="True"

EnableActiveDirectoryIntegration="False"

EnableLDAPIntegration="True"

ConstituentProfileURL="http://YourClientWebSite/ConstituentProfile/Main.aspx"

MailMergeDirectoryPath="C:\"

BroadcastingEnabled="False"

BroadcastingFrequency="30"

BroadcastMessageDisplayTimeout="15"

UnresolvedIssueAlertFrequencyInMinutes="5"

ReportTaskFormat="DESCRIPTION (CODE)"

EnableDatabaseFilter="False"

AutomaticCapitalization="True"

EnableAddModOperatorAlias="True"

/>

Both EnableLDAPIntegration and EnableActiveDirectoryIntegration options should never be set to "TRUE".  The logic for authentication is: If EnableLDAPIntegration = TRUE, use LDAP authentication. Else if EnableActiveDirectoryIntegration = TRUE, use Active Directory authentication. Else, use Personify360 authentication.
