Defining Exhibition Components

Defining Exhibition Product Components

This task defines products that should be included with the active products at no additional charge. Any product in Personify360 can be added as a product component. Transactions and pricing will be at the master product level, not at the component level. Packages cannot be included as a component.

If revenue needs to be recognized from a bundle of products, the combination of products should be created as a package. Unlike components, each detail included in a package is priced at the product level. A rate structure and rate code can be associated with a component product in the Membership and Subscription subsystems.

Components are always $0.

To define components:

1. From the Personify360 main toolbar, select Products > Product Central.
The Product Maintenance search screen displays.

2. Click Search to find a product or click Create New Product.

3. From the Product Definition task category, click Define Components.

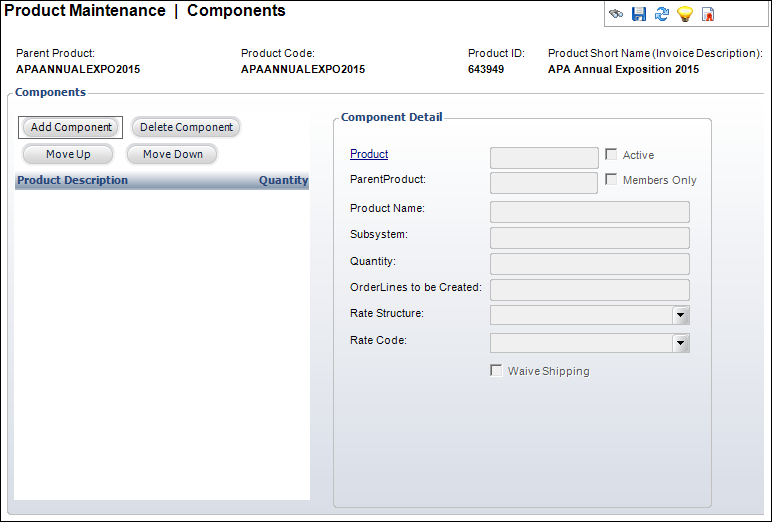

The Components screen displays, as shown below.

4. Click Add Component.
The Product Chooser displays.

5. Select the appropriate product to add as a component.

6. Enter the Quantity.

7. If necessary, enter the Order Lines to be Created number.

8. If necessary, select a Rate Structure and Rate Code.

9. Check the appropriate checkboxes:

· Active

· Waive Shipping

10. If necessary, use the Move Up and Move Down button to arrange the components in the correct order.

11. Click Save.

Screen Elements	Description
Components
Add Component	Button. When clicked, the Choose Product screen displays. Search for a component and double-click it to add it to the table. The fields in the Component Detail section are populated.
Delete Component	Button. When clicked, the highlighted product is deleted as a component.
Move Up	Button. When clicked, the highlighted product is moved one row up in the grid.
Move Down	Button. When clicked, the highlighted product is moved one row down in the grid.
Component Detail
Product	Link. The component product fills in this field automatically. Click the link to open the Choose Product screen and search for a new product.
Subsystem	Read-only. Subsystem associated with the product.
Parent Product	Read-only. Brought in from the product search for new records or from the PRODUCT COMPONENT table for existing components.
Product Name	Read-only. The name of the product selected from the Product field.
Rate Method	Drop-down. The method for determining the rate. For example, Calculates indicates the system will determine the rate structure and rate code.
Quantity	Text box. The quantity of the component that should be included.
Order Lines to be Created	Text box. How many order lines you want created based on the quantity given.
Rate Structure	Drop-down. Validated against the rate structure table. When set, this specific rate structure will be used on the order detail record created when the product is ordered.
Rate Code	Drop-down. The rate or price associated with the rate structure selected.
Waive Shipping	Checkbox. When checked, this component will not be included in any calculation of shipping charges.
Active	Checkbox. When checked, it signifies the component is active.
